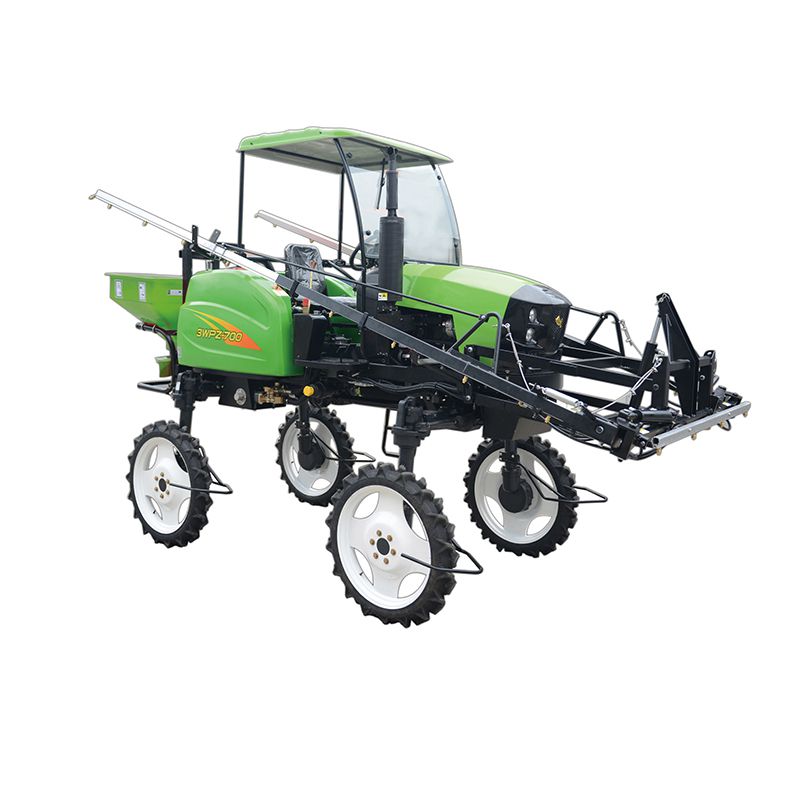

Large self-propelled spraying machine with reliable quality IF-3WPZ-700G

-Standard Power: 36.8/2400kw/r/min (50HP)

-Tank Capacity: 700L

-Working pressure: 0.2-0.5Mpa

-Matched Engine:Four-cylinder, Four-stroke water-cooled diesel engine

-Sprinkler type: Fan nozzle

-Spraying width: 12000mm

-The flow of the pump: 45-63L/min

-Ground clearance: 1100mm

-Wheelbase: 2050mm

-Before and after the maximum Track: 1500mm

-Tyre type: Pneumatic tire

-Brake form: Moisture friction brake

-Clutch form: Pressure plate type

-Driving method: Four-wheel drive

-Speed:

 1 gear: 4.5km/h

 2 gear: 7km/h

 3 gear: 18km/h

 R gear: 4km/h

Product decomposition diagram

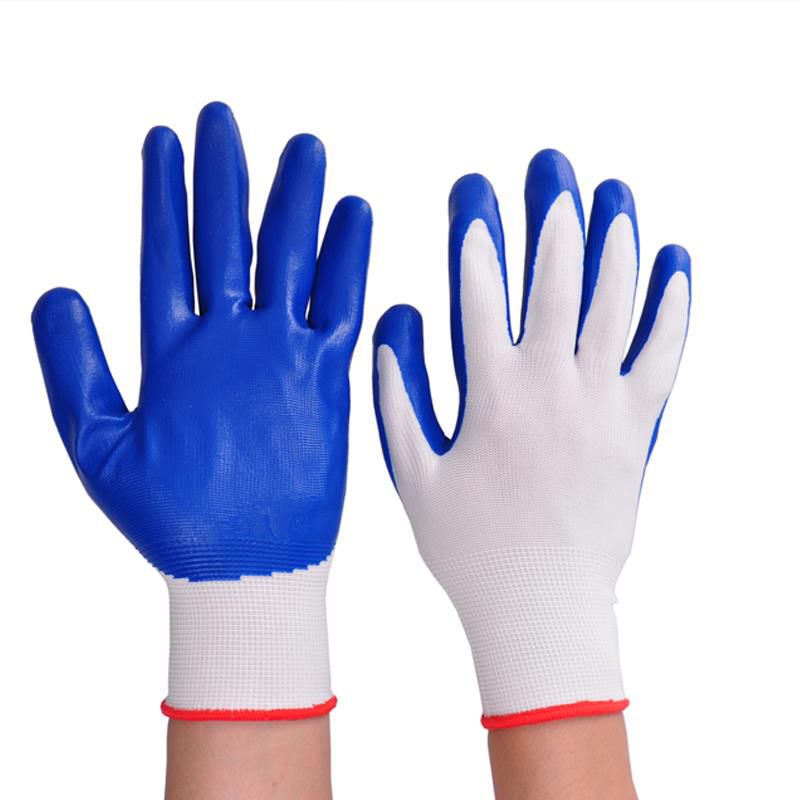

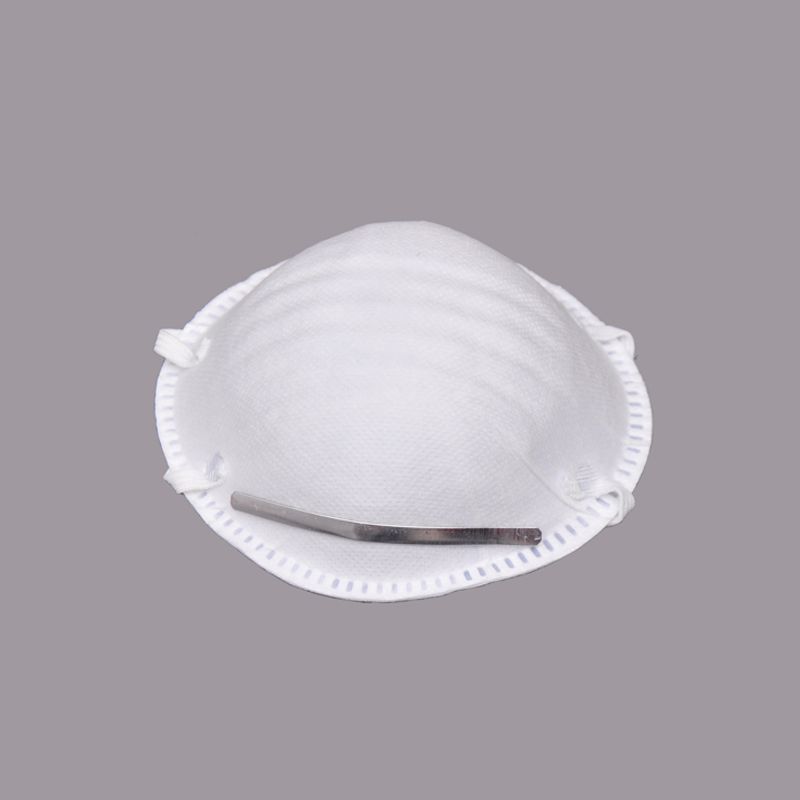

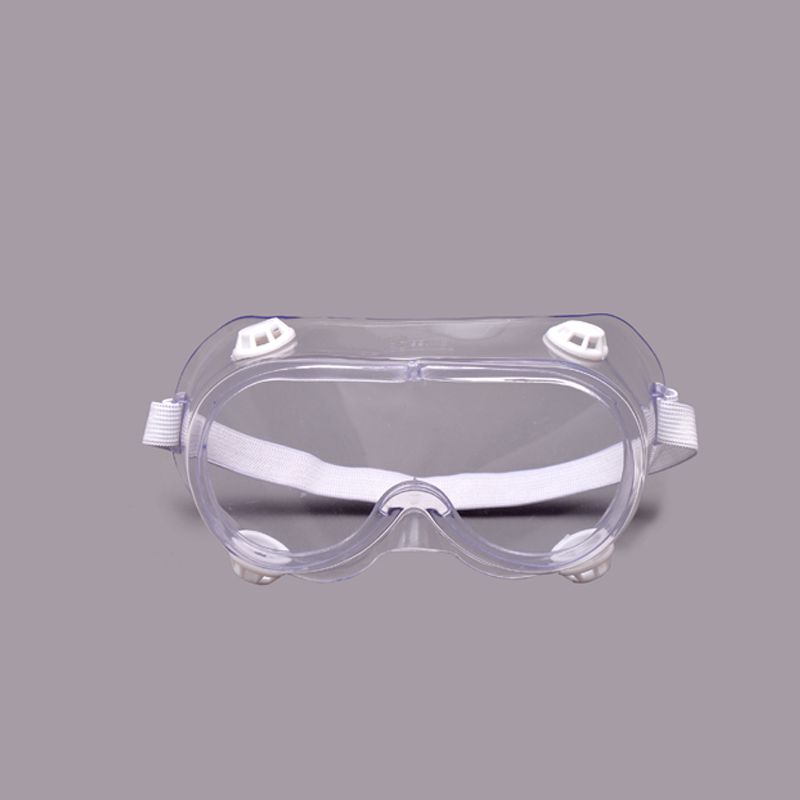

Replaceable accessories and protective gear
